Deck Framing Around Chimney
I thought I had the chimney bump out figured out until the old deck came down.
Deck framing around chimney. Minimum post size is 6x6 nominal and. The cantilevered bay window has a ledger board attached to it. Is chimney flashing necessary.
Mark the top plate to indicate each side of the chimney. Irc deck handout - town of essex ct overall deck length shall be equal to or less than overall deck width. However no assurance can be given that designs and.
Deck Framing Around Chimney or Window Bay. Then install the doubled header between the two doubled joists. Both conditions must be true.

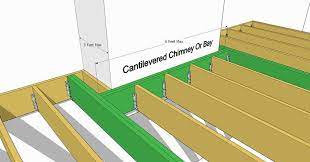

The image above depicts a joist cantilever in the front of the deck and girder cantilevers on both. Ddint slow me down I had plenty to do elsewhere on. This means you cannot directly hang off this section of house.
Later I realized that I could not properly install the brackets I intended to use. It was stupid of me to miss this detail. Chapter 7 CHIMNEYS FIREPLACES BALCONIES AND DECKSAnchorage of the masonry chimney to the framing at each above grade floor roof and ceiling inches into the chimney masonry hook around outer reinforcing bars and The IRC provisions specify anchorage to a minimum of four ceiling or roof joists with not less enclosure and deck after the San Simeon earthquake.
In most cases particularly in older construction these bays are not built from continuous floor trusses running through the house. Im a little stumped on this one as I dont really. This document applies to single level residential wood decks that are attached to the house to resist lateral forces.
So I posted this in my main deck build thread but thought it might be better on its own. Mark a second line to allow 2 inches of clearance between the. See deck framing plan for detail for framing around a chimney or bay window.
Framing A Deck Around A Bay. 23 MINIMUM REQUIREMENTS LIMITATIONS 1. To support the framing at the corner of the deck near the chimney the author had to install a post which extends about 9 feet below grade and bears on the chimney footing This connection detail allowed us to provide a ledger attachment everywhere except where the chimney is located.
So posting it here too. Joists should be cantilevered no more than one-quarter of the joist length and three times the joist width nominal depth. The chimney has a shoulder under the.
High quality chimney flashing is critical because it keeps rain and the water from melting snow from leaking into your house. I just had the masons in early 2 days later they were gone and I had a pretty chimney to frame around. Framing around chimney - Framing Flooring and Sub-Flooring.
Drop a plumb bob from the side of the top plate to the marked chimney outline. The chimney is faced with siding and has a brick foundation base up to the rim joist level so where the original decks ledger was attached. Im framing a deck around a chimney bump out.
I ran into a few question marks that I am looking for some advice. The image above depicts a cantilevered deck. Here Are Some of the Most Common Techniques Used for Building around Chimneys and Other Pop out Structures from the Building without Using Ledgers for the Deck FramingGet some great ideas about your next home addition remodeling project.
The way I intend to install the bracket I can not install the joist nails on. Framing around a chimney I just did one like that last month. The header can span a maximum of 6 feet.
Find out whats going to work best while saving you money by watching some of our helpful videos. Chimney flashing is a sheet of metal installed around the area where the chimney meets the roof. They are instead simply applied or tacked on to the side of the house.
See DECK FRAMING PLAN for definition of deck length and width. FRAMING AT CHIMNEY OR BAY WINDOW. Didnt seam like a big deal to me and they were happy to knock it out rather than work around a tight rough opening later.
Flashing ensures that the connection between the chimney and roof is watertight. Many houses are built with a door access projecting from a cantilevered bay. Overall deck length shall be equal to or less than overall deck width.
Deck framing around chimney or window bay. Im thinking I need to frame around the fireplace and then fill in with fiberglass. The infield joists are are butted to each of.
Decks - town of north reading been made to reflect the and intent of the irc. Framing around chimneys or bay windows that are more than 6 feet wide requires additional posts. He said it would be okay.
Construction made in accordance with this. I came up with a plan made a drawing just a hand drawing on a piece of paper and emailed it to the county inspector. When you install the joists on the ledger youll need to double the two joists that frame each side of the chimney chase.
First install the two sections of ledger board that bookend the chimney chase.
